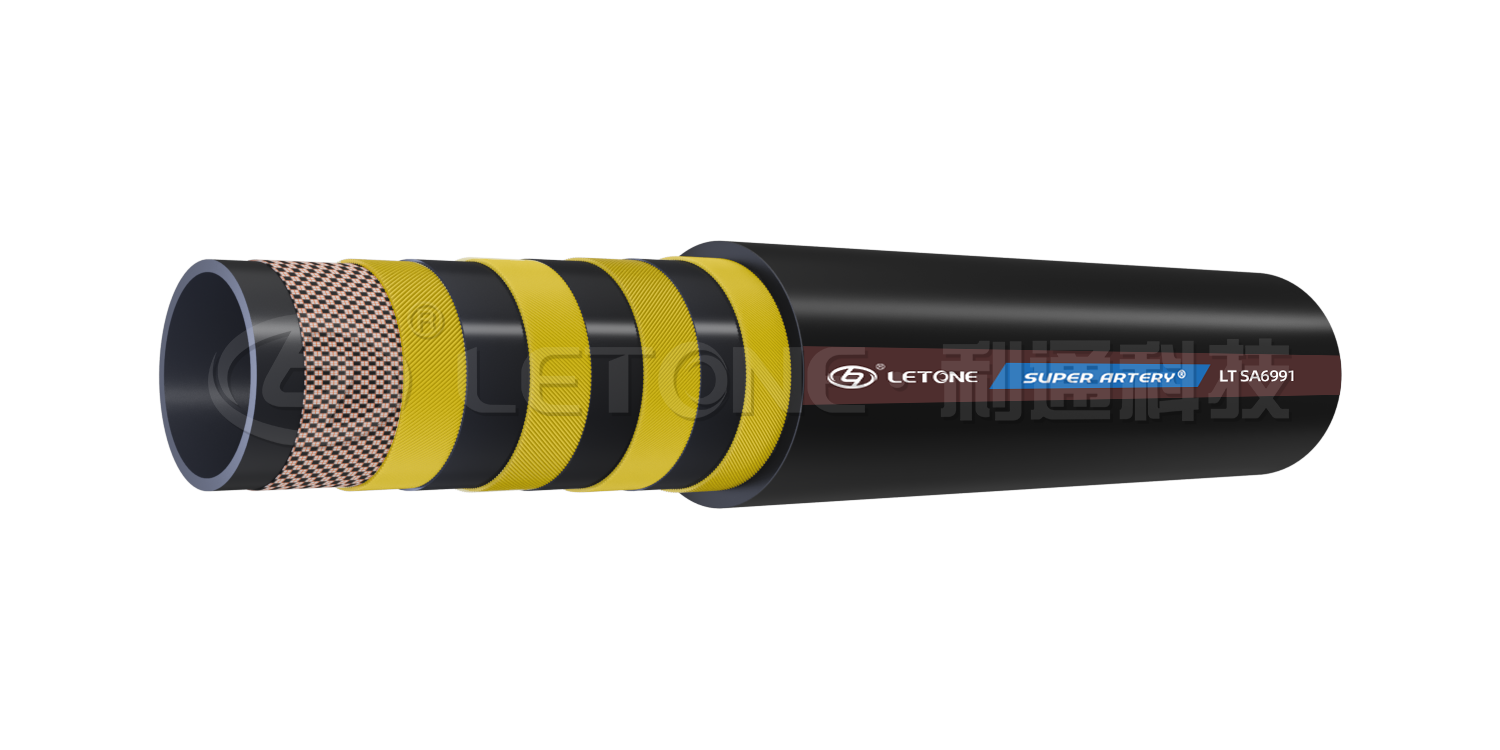

[ LT SA6991] EXCEEDS ISO18752-AC/BC/CC Super Artery Low Bend Series

Inner Tube: NBR or CR synthetic rubber, suitable for biodegradable hydraulic fluids.

Reinforcement: one braid of high tensile steel wire(1/2"-3/4"), impulse≥30o,oo0 cycles. four plies of spiraled high tensile steel wire (1”-2"),impulse≥1,0oo,oo0 cycles.

Cover:

- Standard: no-skive abrasion, weather resistant synthetic rubber.
- AR cover: no-skive, highly abrasion, weather resistant synthetic rubber.
- SAR cover: super abrasion, weather resistant UHMWPE.

Temperature Range:-40°C～+121°C(-40°F～+250°F) -55°C~+100°C(-67°F~+212°F)

Hose Features:

- Low bend radius: the average bend radius is 41% less than the ISO 18752 AC/CC standard, 47% less than the SAE standard.
- High pressure: the average pressure is 6o% higher than the SAE standard.
- Long service life: guarantee for two years by using with Letone one-piece or swaged fittings and HNBR seals.

Applications: suitable for heavy duty construction machineries such as excavators or harsh environment use.
